High reliability with high performance: The modular system of the new HIL-34 generation makes the machine a highly fl exible solution for the internal coating of beverage and food cans. The main machine is available either as a stand-alone version or as a table-top version for integration into the production line. Both beverage and food cans can be internally coated on an extremely robust base machine. By combining individual machines, the cycle rate can be adapted to the line speed.
- Six vacuum supports with or without centering fl ute

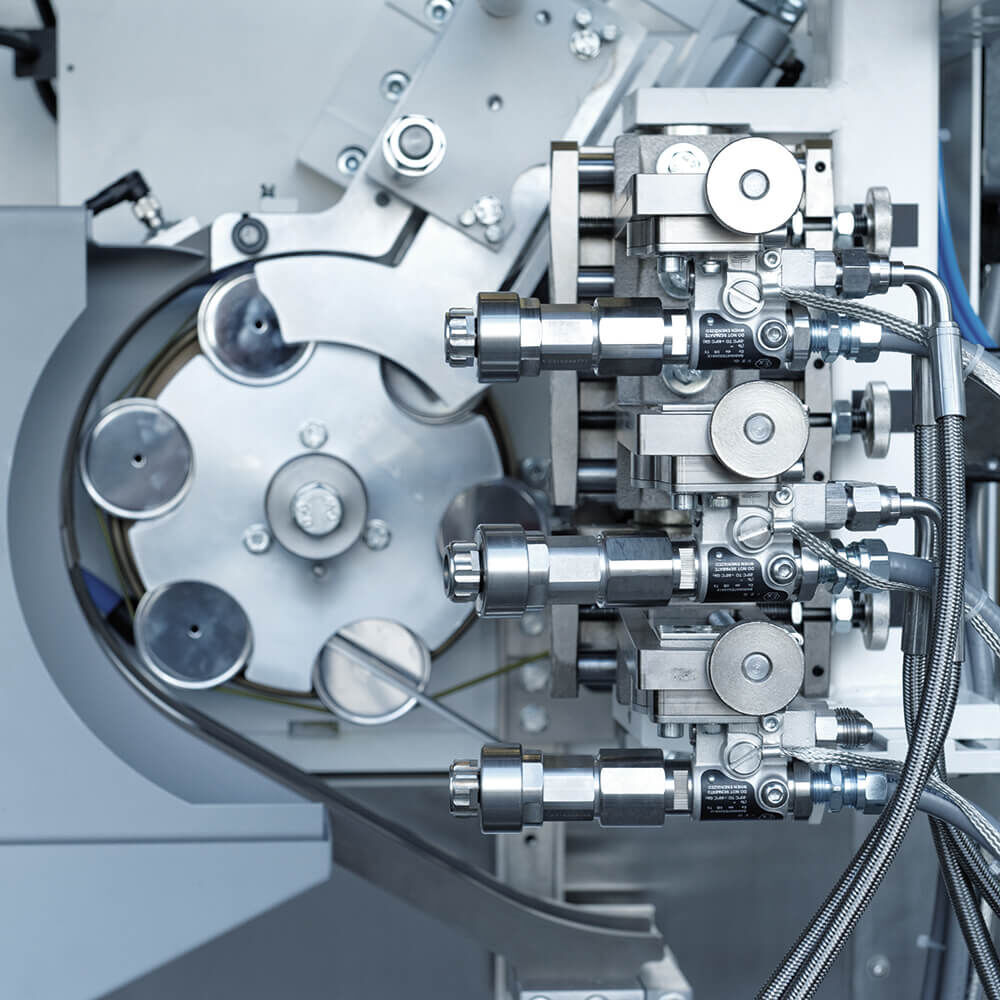

- Up to three airless spray guns which can be swiveled out and adjusted separately
- For solvent-based or water-based coatings
- Base machines can be combined in any number
- Module capacity up to 350 cans per minute
- iTrax system (optional) for spray monitoring, timing control and spray pressure regulation
- Adjustable spray pressure for each spray gun
- Manufactured in accordance with the ATEX guideline
- Clean stainless steel design
BENEFITS
- Airless coating
- High accessibility of all relevant components
- Quick-change system for fast changeovers
- Pre-confi gured change parts
- Complete spatial separation of drive and coating area to prevent part contamination
- Skid-mountable: Fully pre-piped module combination, pre-assembled on the platform, for fast and error-free installation
OPTIONS
- Lacquer supply including paint temperature control
- Thermo control unit for monitoring and controlling the coating temperature
- Connection to the customer’s existing exhaust system
- HMI touch panel
- Servo main drive

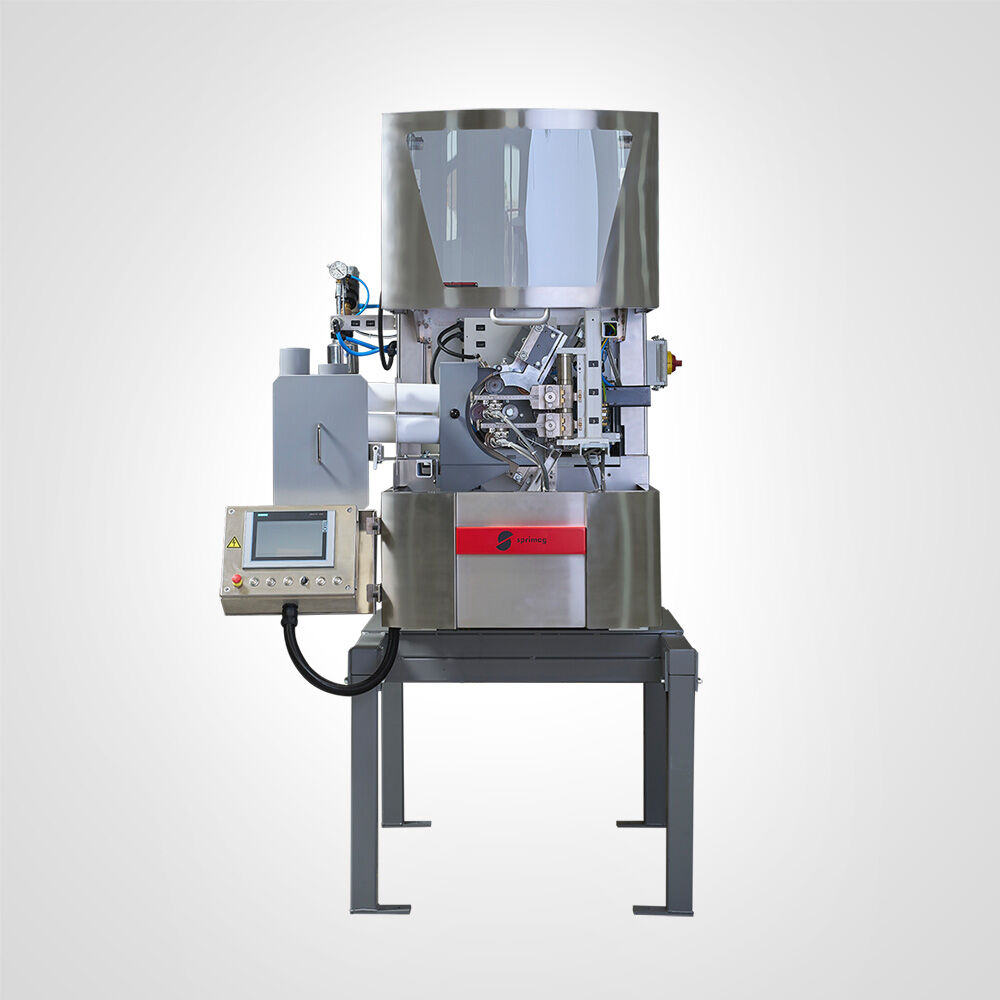

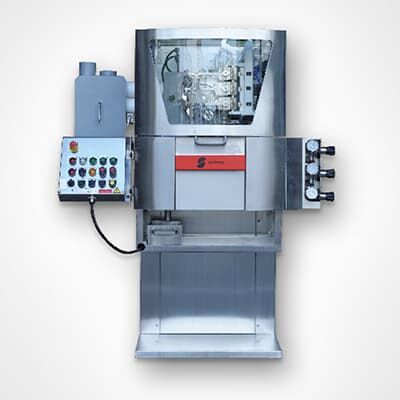

- Available as stand-alone or table-top version
Technical Data
- Type of coating: Internal wet coating
- Product range: Beverage and food cans
- Product diameter range: Dmin = 46 mm, Dmax = 92 mm
- Product length range: Lmin = 85 mm, Lmax = 195 mm
- Production capacity: up to 350 pieces per minute
- Spray guns / Spraying process: 3/3 (triple pass), 2/2 (double pass)
- Electrical connection power: 14 kVA
