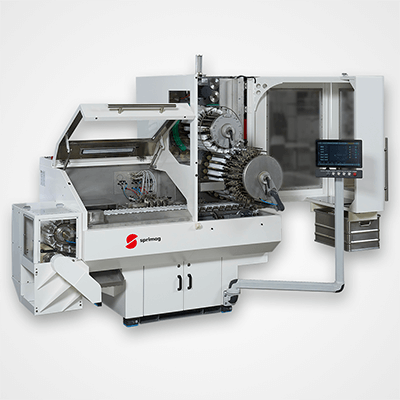

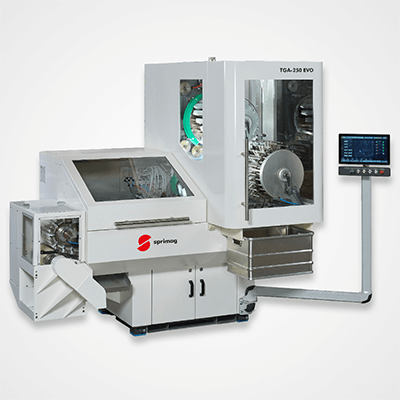

TGA-250 EVO: TUBE LATEXING MACHINE WITH INTEGRATED INSPECTION UNITS

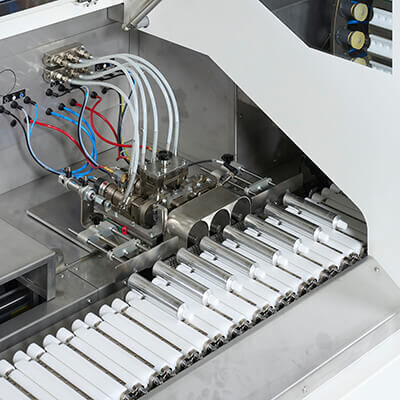

The new TGA-250 EVO tube latexing machine combines several production steps from different Sprimag machine solutions. The tubes will not only be latexed, but also be inspected pneumatically and visually and directly ejected in case of defects. Three S-540 centrifugal spray guns with adjustable stroke movement carry out the latexing function, so that even more precise results are achieved due to the longer latexing times.



Flyer TGA-250 EVO



Download >>









  • Line speed up to 200 tubes per minute
  • Equipped with the high-end centrifugal gun S-540
  • Additional parts ejection used for fine adjustment of the centrifugal guns down­stream of the latexing unit

  • >> Datasheet for Download
Request now

OPTIONS

  • Pneumatic leak detection by 24 testing heads up to a leak / crack size of 0.05 mm
  • Visual camera inspection system for internal coating and latex inspection as an „open platform“: different camera systems available depending on customer requirements
