Compact System for Internal Coating of Aluminum Tubes:

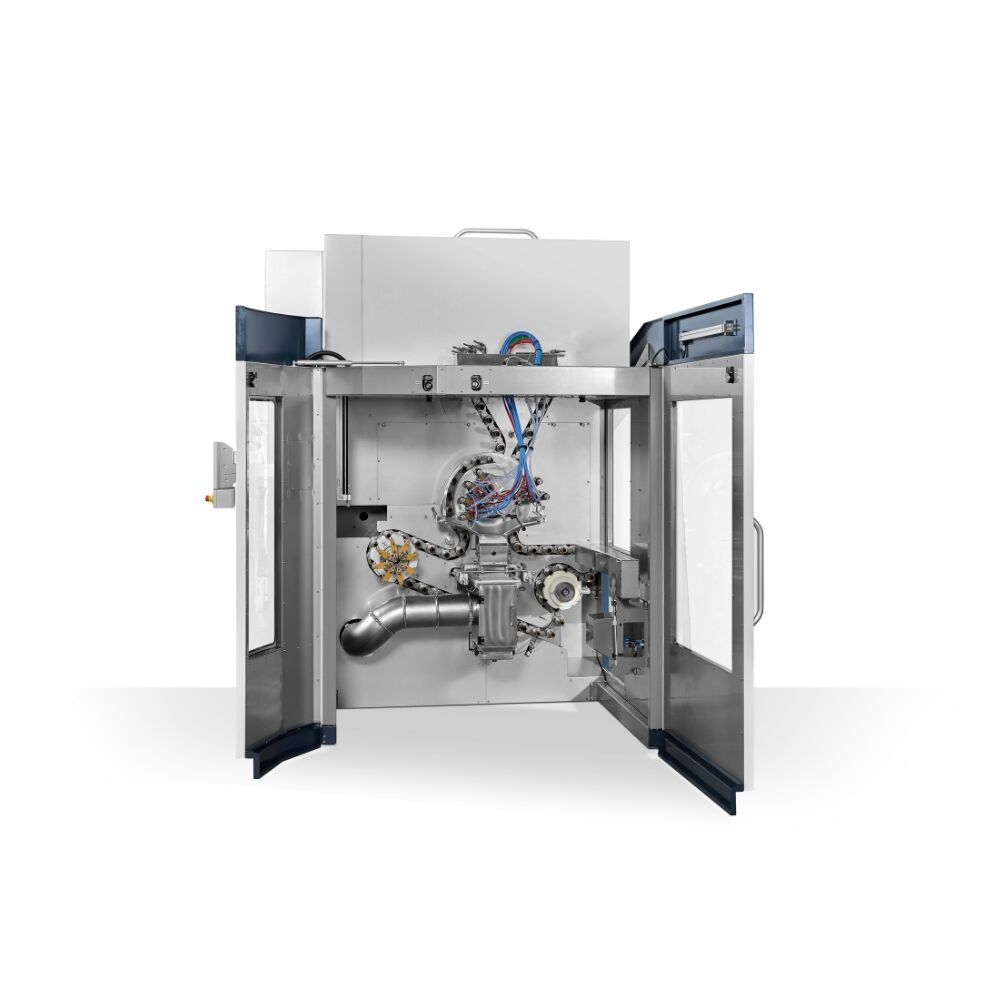

The HIL-46 internal coating machine for collapsible aluminum tubes impresses with its space- and energy-optimized design concept. In combination with the EAM-4 Electric Annealing Machine and the TIT Internal Coating Drier the HIL-46 represents the most modern and advanced internal coating system for aluminum tubes. Optionally, the machine can also be configured as a HIL-48 with an electrically heated intermediate drying to achieve optimal coating results between the single coating processes.
- Compact machine design
- Production speed up to 180 tubes per minute

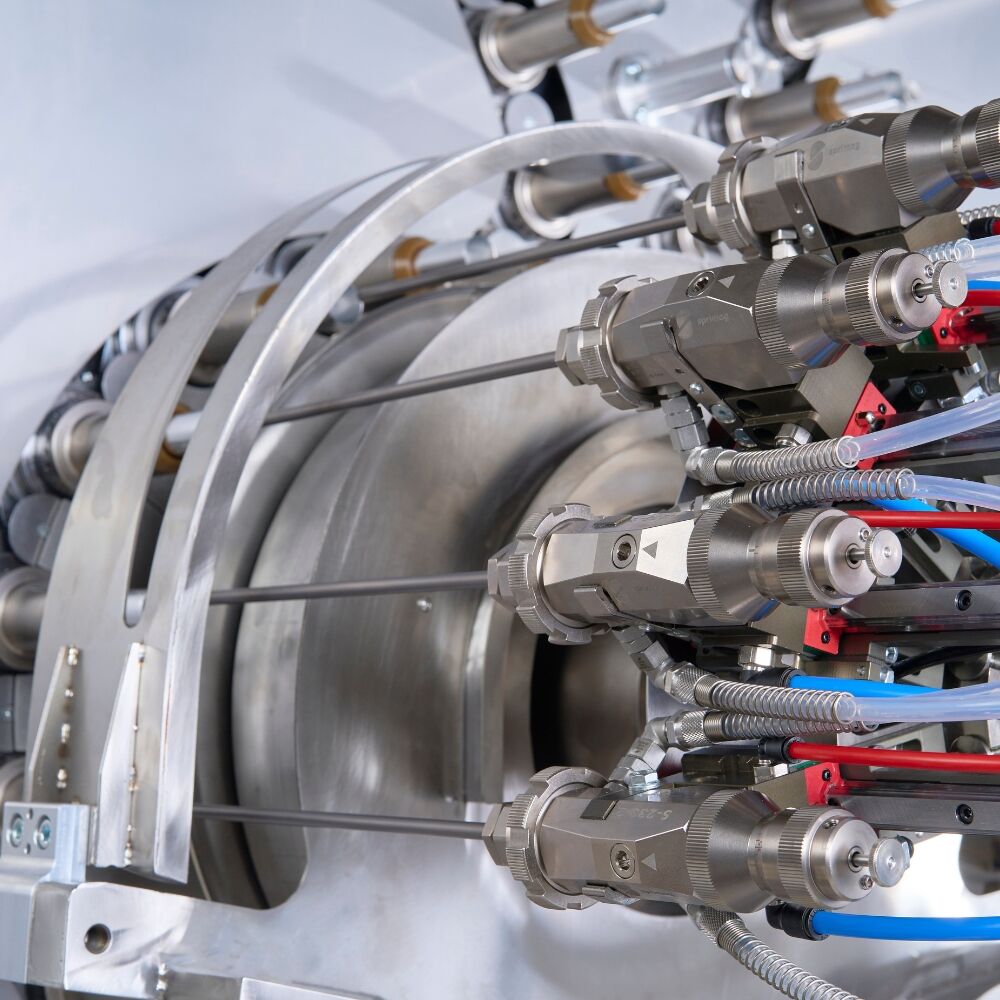

- Triple coating by 6 spray gun system
- Increased operating comfort thanks to direct, electropneumatic control of the spray guns via HMI
- Separate servo drives for stroke and transport movement

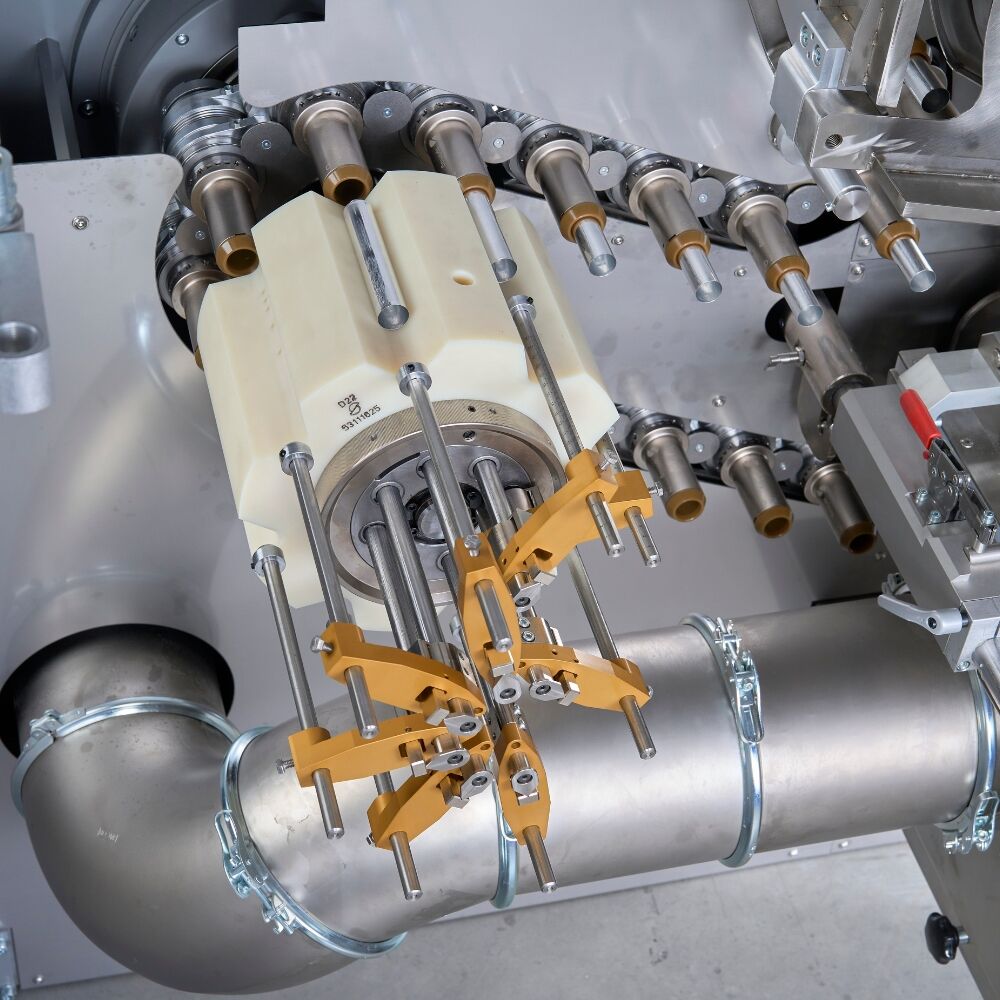

- Proven quick-change system for size parts
- Swivelling HMI panel

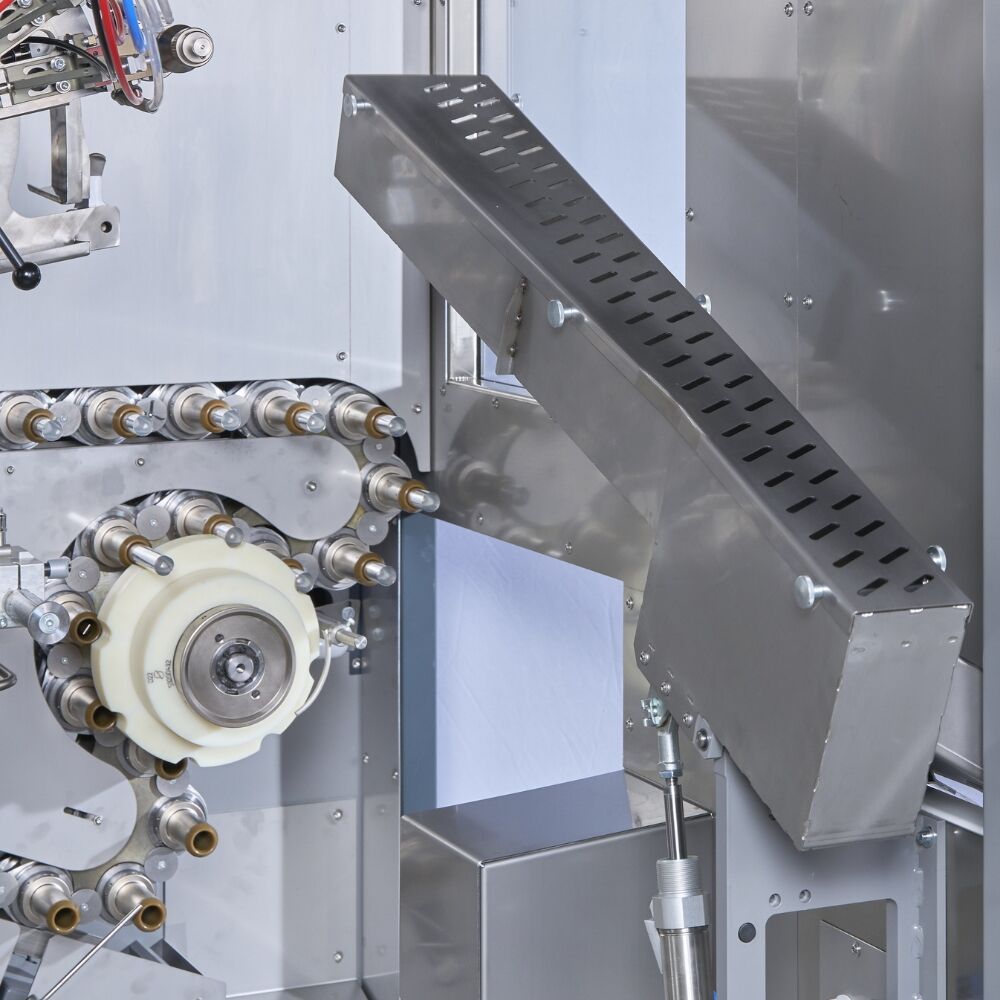

- Automatic part ejection during production process
- Optimized machine dimensions ensure compatibility with older production lines
- Manufactured in accordance with the ATEX-regulations
OPTIONS
- Electrically heated intermediate drying
- Additional set of spray guns with quick-change-system
- Exhaust system
- Additional lacquer supply unit
- Energy optimizing and vacuum control system
- RFID-access verification system
Technical Data
- Finished product: Aluminum tubes
- Product diameter range: Dmin = 10 mm, Dmax = 50 mm
- Product length range: Lmin = 70 mm, Lmax = 220 mm
- Production speed: up to 180 tubes per minute
- Spray guns / Spraying process: 6/3 times
- Application Technology: 6x Type S-233 or 6x Type S-8
- Electrical connection power: 95 kVA
EAM-4 Electric annealing machine for aluminum tubes
- Production speeds of up to 200 tubes/min
- Over 75% energy savings compared to conventional tube annealing ovens
- Electrically heated with annealing temperatures up to 510 °C
- Precise temperature control (+/- 3 °C) throughout the entire process
- Low number of tubes in the annealing area
- Innovative heating system with contact heating
- Safe tube transport without transport chain

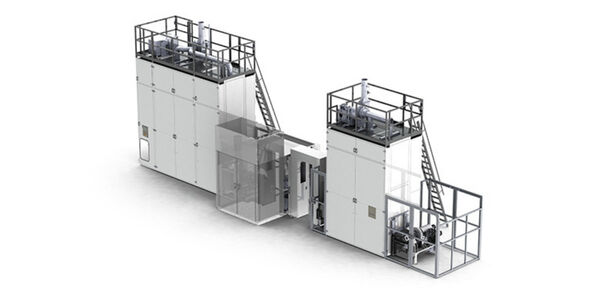

Annealing Oven TGO + Internal Drier TIT
- Reduced wearout of the transport chain and the chain wheels by cardan-based drive system
- Chain tensioner with weight, electronically monitored
- Quadruple door lock
- Isolated doors with special door hinges for synchronized door closing
- Large outer doors with smooth surface on the front and rear sides
- Quick and easy removal and reassembly of the shafts and chain wheels in case of service
