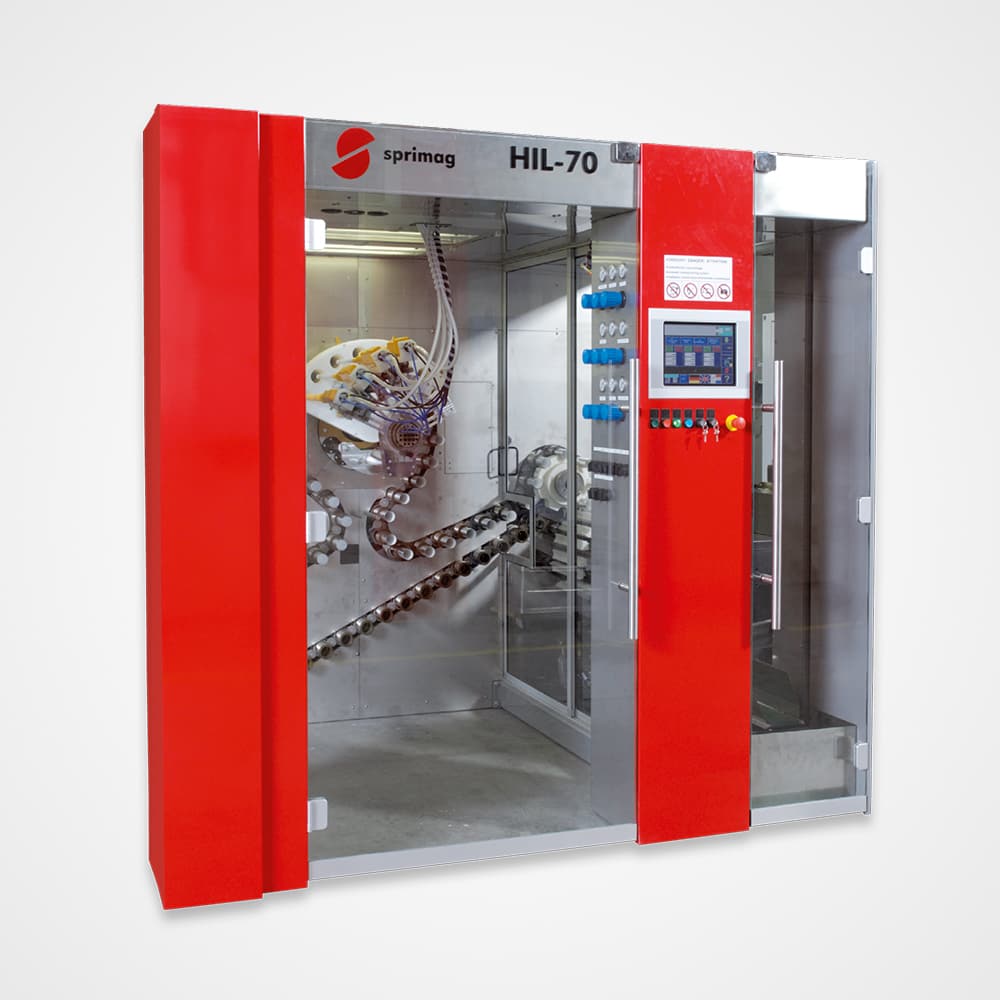

HIL-70: Internal coating of powder and wet paint

Internal powder coating has been a subject of great interest to manufacturers of collapsible tubes and aerosol cans for several years. The VOC Solvent Emissions Directive (SED) has provided additional impetus to this coating method. Sprimag has addressed the challenge of reducing overall solvent emissions with the introduction of the HIL-70. With the developed HIL-70, it is possible to coat both, with wet and powder coating. The dual-use system allows easy retrofitting of the machine from wet paint to powder, thus ensuring a smooth implementation to the new technology without investment risk.


  • Vacuum handling outside of spray cabin

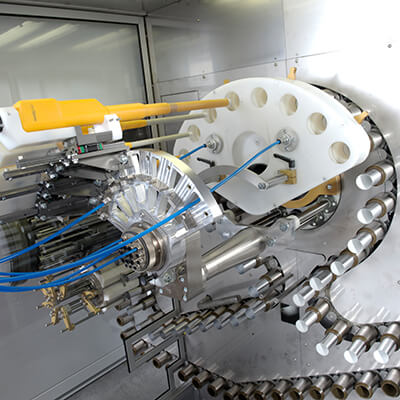

  • Accurate and smooth movement for the powder application
  • Proven quick-change system for size parts
  • Safety-unlock on each powder gun
  • Manufactured in accordance with the ATEX regulations
Request now


  • Reduced wearout of the transport chain and the chain wheels by cardan-based drive system
  • Chain tensioner with weight, electronically monitored

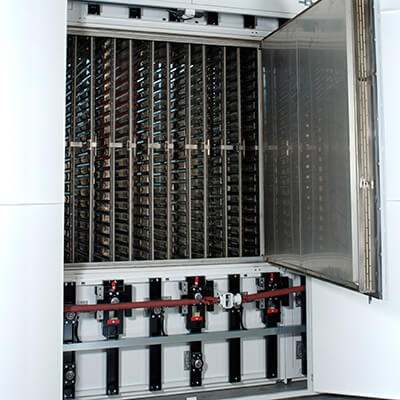

  • Easy accessibility to the drier interior due to large doors
  • Quadruple door lock
  • Isolated doors with special door hinges for ­synchronized door closing
  • Large outer doors with smooth surface on the oven‘s front and rear sides
  • Quick and easy removal and reassembly of the shafts and chain wheels in case of service
