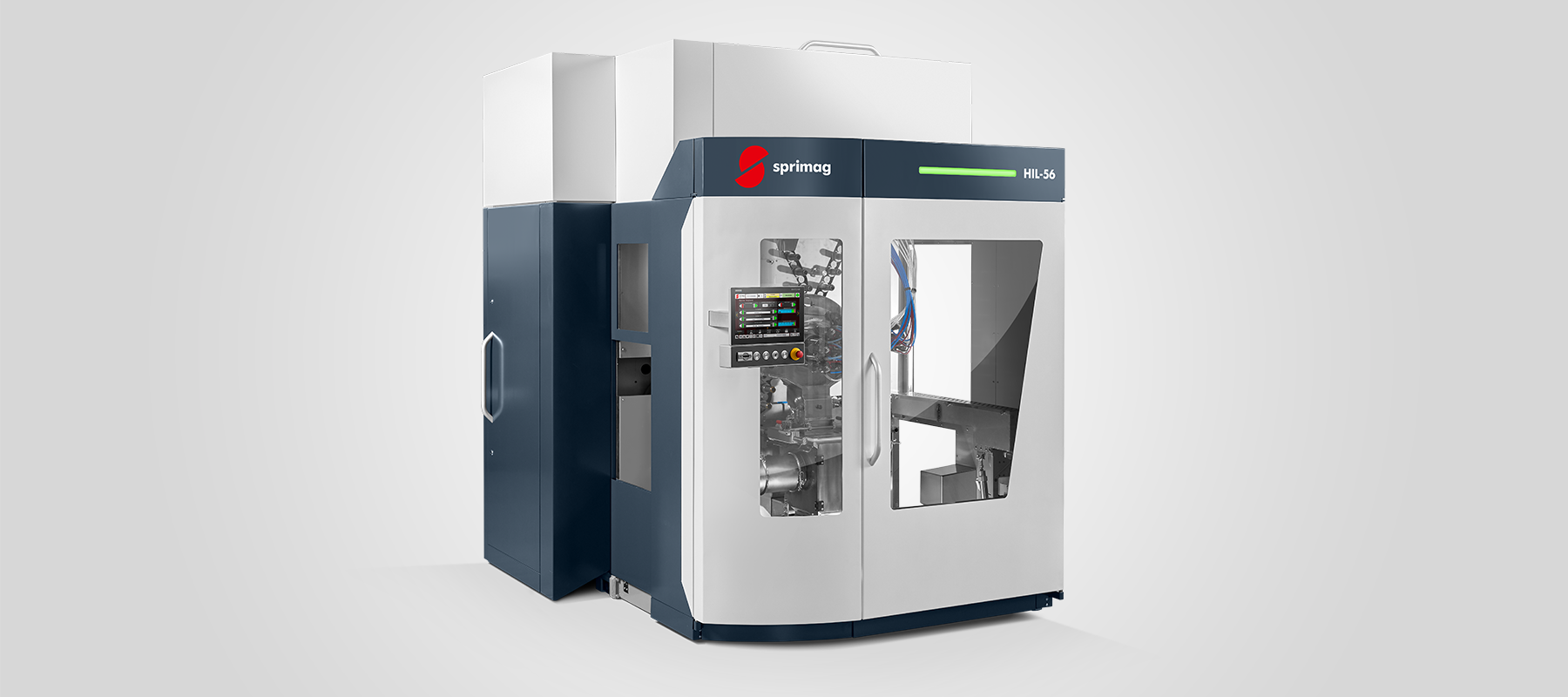

HIL-56 NG: Compact System for internal coating of Monobloc Aerosol Cans

The HIL-56 NG internal coating machine for aerosol cans and beverage bottles impresses with its cost-, space- and energy-optimized coating concept. The internal coating machine, which is based on standard assemblies, is enhanced by energy­-optimized system components such as the Sprimag internal coating drier.

  • Compact machine design
  • Machinery speed up to 180 cans per minute
  • Triple coating on 6 spray guns
  • Increased operating convenience thanks to direct, electro-pneumatic control of the spray guns via HMI
  • Separate servo drives for stroke and transport movement
  • Proven quick-change system for size parts
  • Height-adjustable and horizontally movable HMI panel
  • Automatic part ejection during production process
  • Machine dimensions adjusted to integrate in older production lines
  • Manufactured in accordance with the ATEX-regulations
Request now

OPTIONS

  • Additional lacquer supply
  • Cleaning device for spray gun extensions
  • Energy optimizing system and vacuum control
  • Second spray arm with full spraying equipment assembly
  • Can bottom suction device
  • RFID-access verification system
  • Division of spray gun groups into separately ­controlled circuits

TECHNICAL DATA

  • Product range: Aerosol cans and beverage bottles
  • Product diameter: Dmin 20 mm, Dmax 66 mm
  • Length: Lmin 70 mm, Lmax 270 mm
  • Production speed: 180 cpm
  • Spray guns/Spray process: 6/3 times

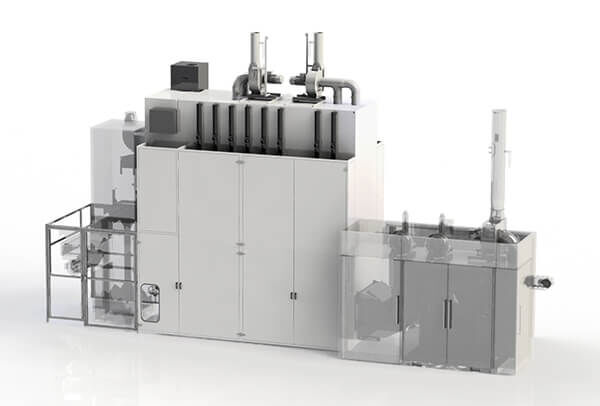

Internal drier for cans DIT



  • 1-row transport chain with baskets
  • Reduced wearout of the transport chain and the chain wheels by cardan-based drive system
  • Chain tensioner with weight, electronically monitored
  • Easy accessibility to the drier interior due to large doors (front and back door)
  • Quadruple door lock
  • Isolated doors with special door hinges for ­synchronized door closing
  • Large outer doors with smooth surface on the oven‘s front and rear sides
  • Quick and easy removal and reassembly of the shafts and chain wheels in case of service










Application Areas of the Internal Coating Machine





Internal Coating of Aerosol Cans

Internal Coating of Beverage Bottles
