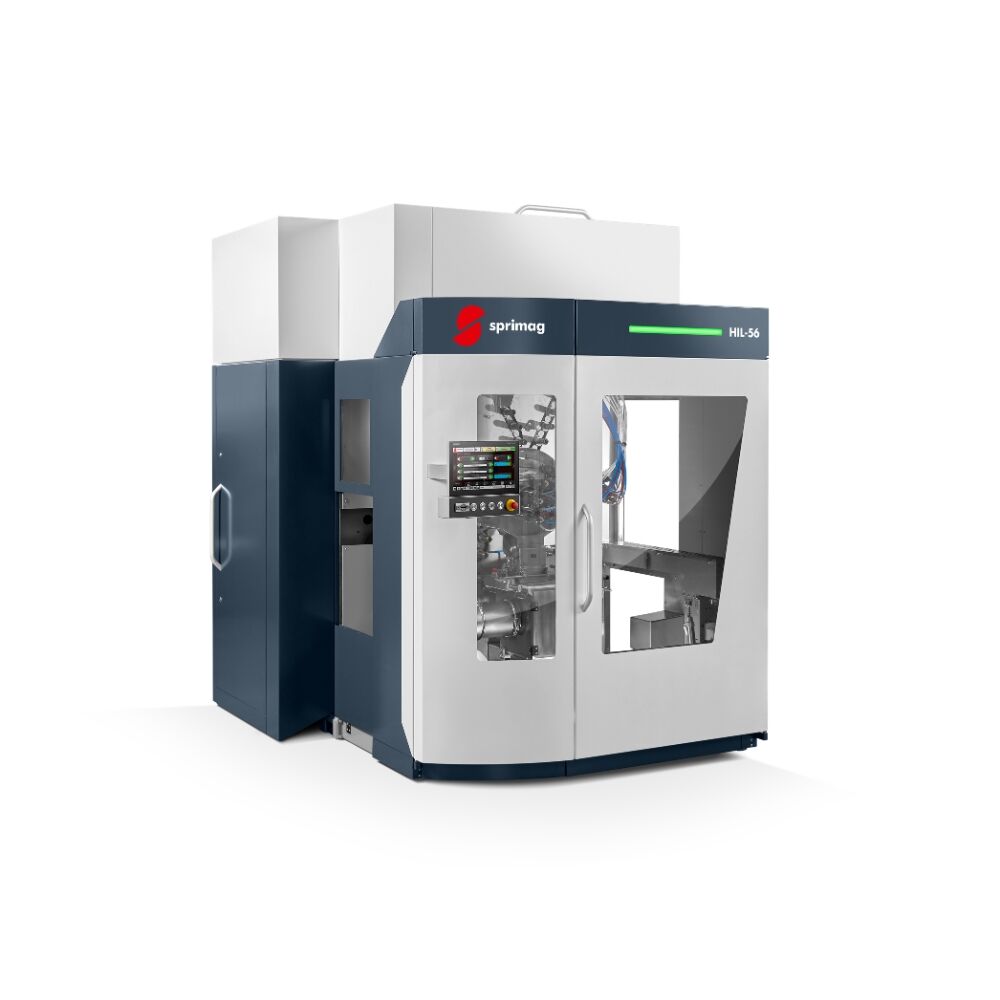

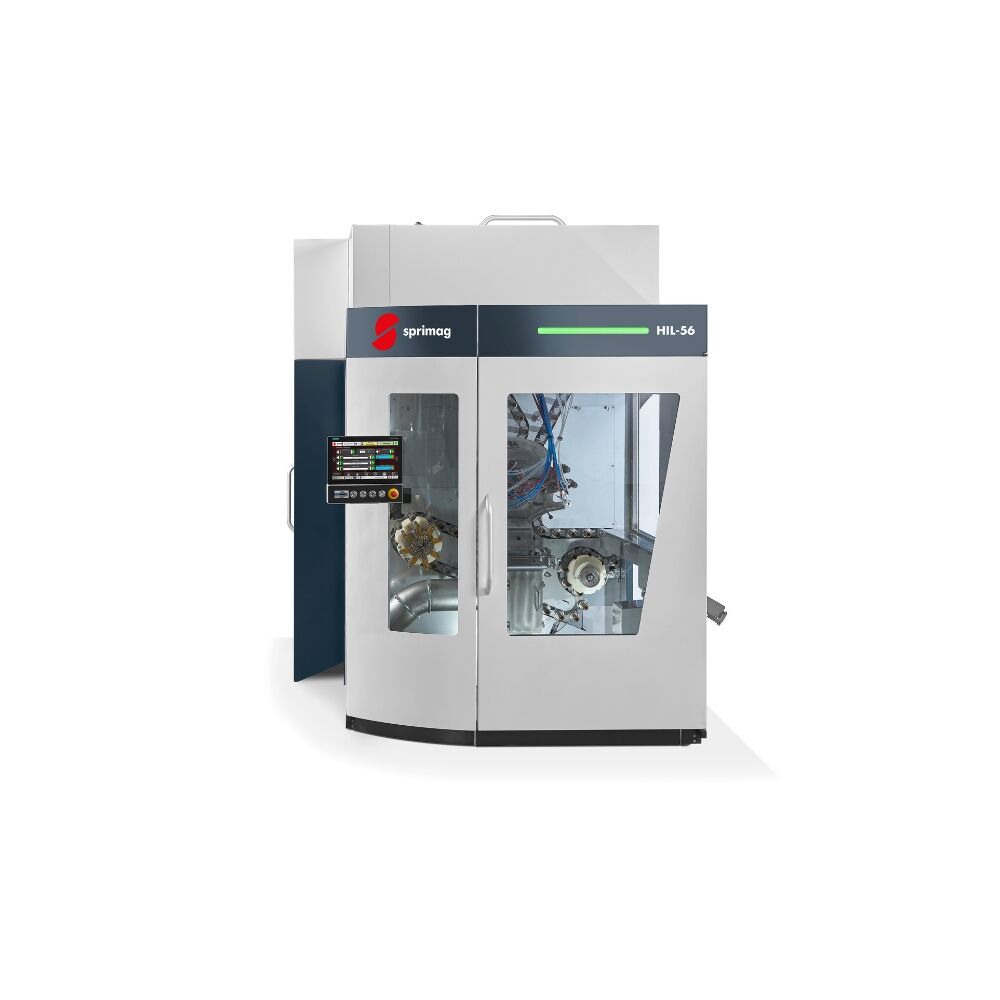

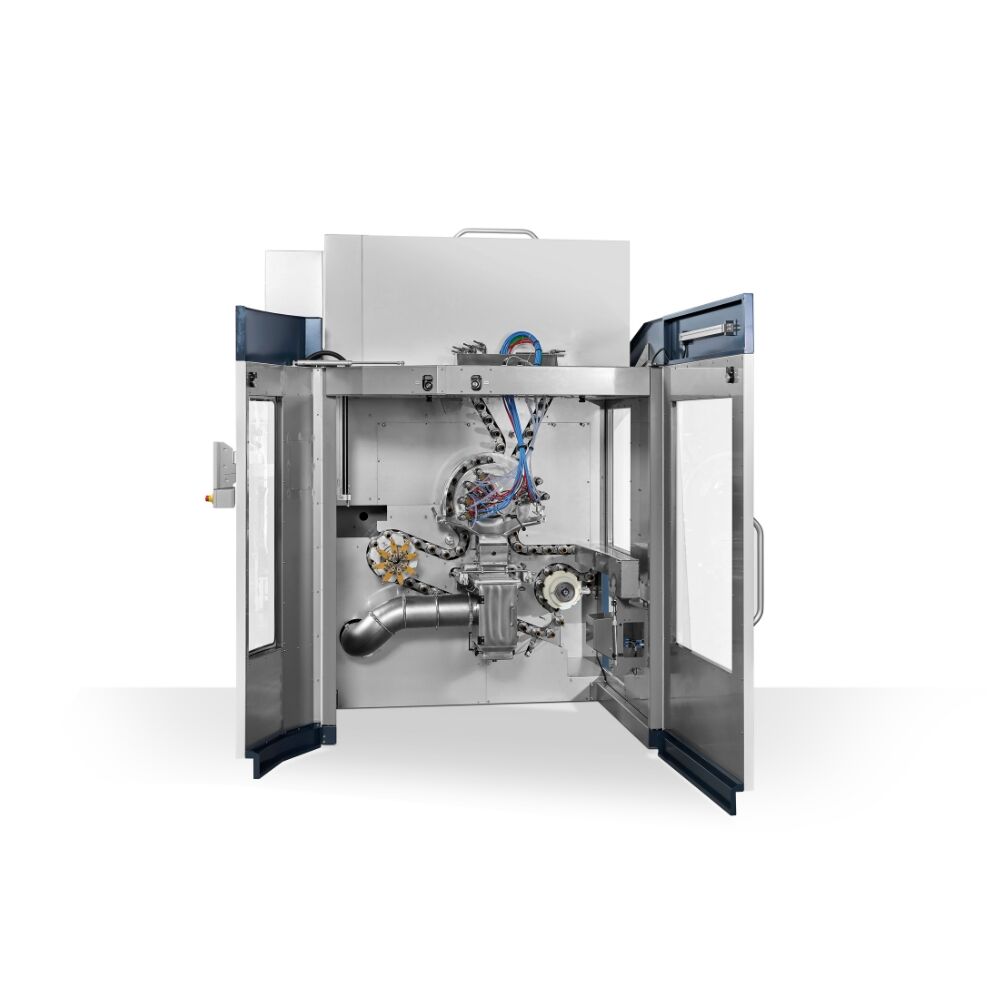

Compact System for Internal Coating of Monobloc Aerosol Cans:
The HIL-56 internal coating machine for aerosol cans and beverage bottles impresses with its space- and energy-optimized design concept. The internal coating machine, which is based on standard components from the larger HIL-96 series, is enhanced with an energy-optimized internal coating drier equipped with a cooling tower.
- Compact machine design
- Production speed up to 180 cans per minute

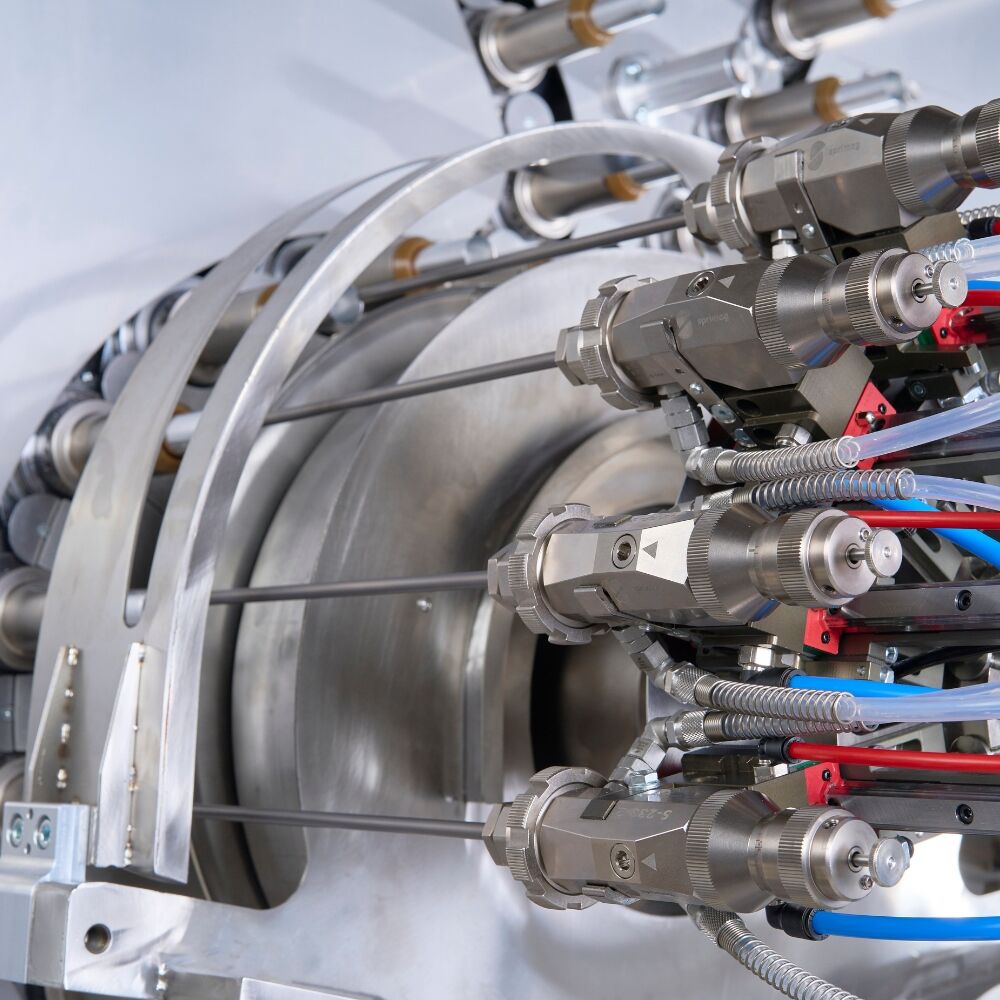

- Triple coating by 6 spray gun system
- Increased operating comfort thanks to direct, electropneumatic control of the spray guns via HMI
- Separate servo drives for stroke and transport movement

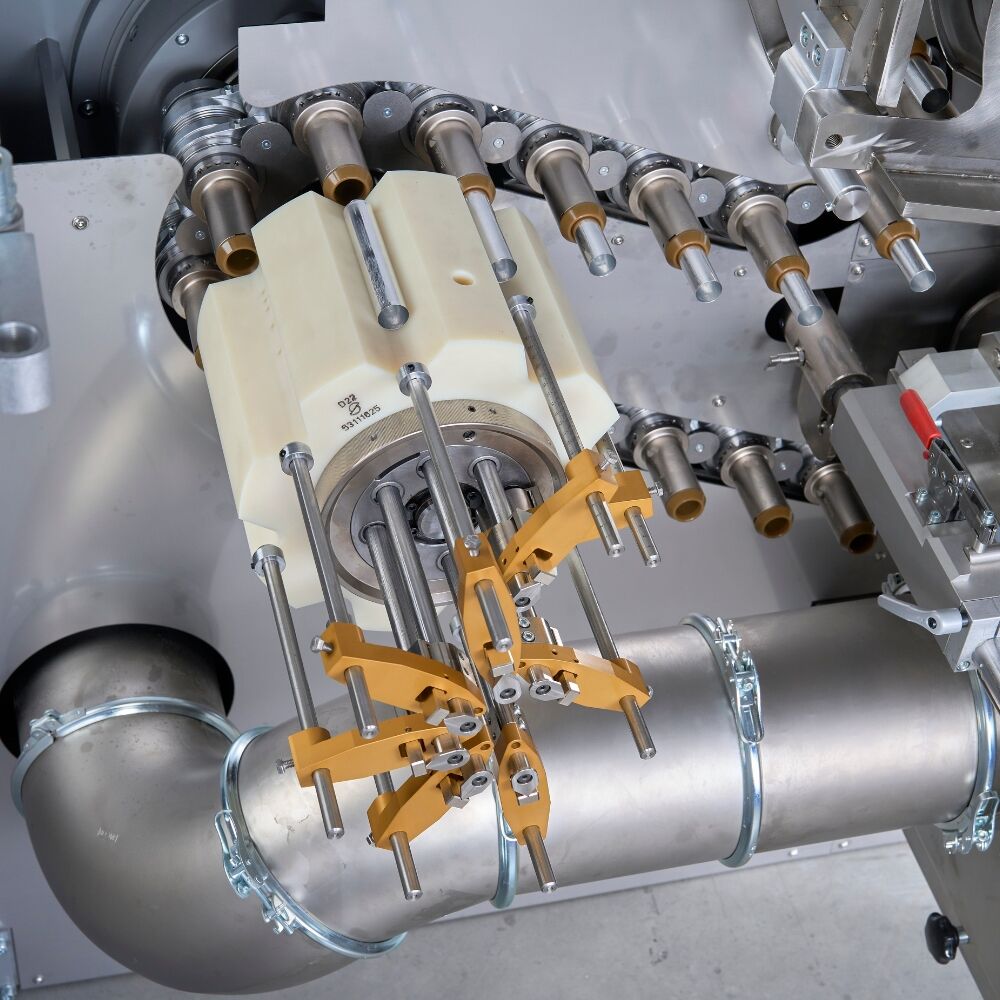

- Proven quick-change system for size parts
- Swivelling HMI panel

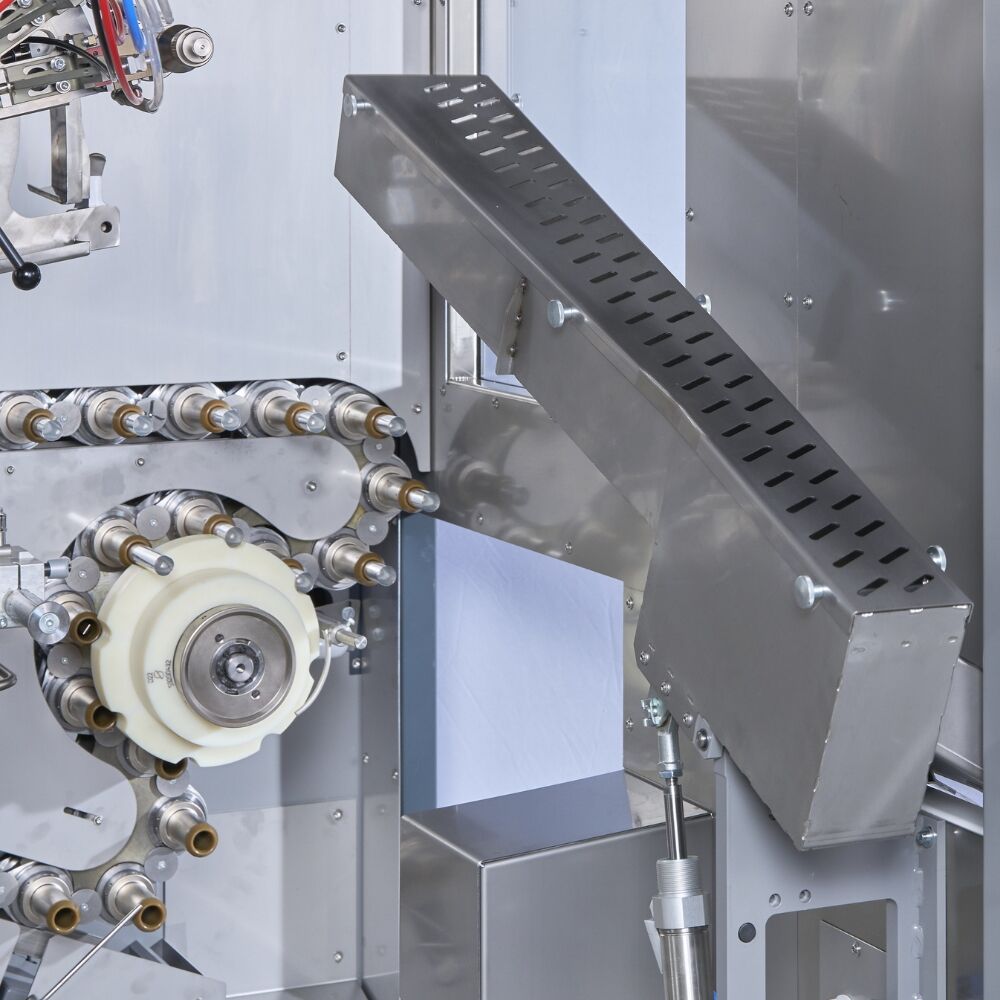

- Automatic part ejection during production process
- Optimized machine dimensions ensure compatibility with older production lines
- Manufactured in accordance with the ATEX-regulations
OPTIONS
- Additional set of spray guns with quick-change-system
- Exhaust system for can bottom overspray seperation
- Additional lacquer supply unit
- Energy optimizing and vacuum control system
- RFID-access verification system
Technical Data
- Finished product: Aerosol cans and beverage bottles
- Product diameter range: Dmin = 20 mm, Dmax = 66 mm
- Product length range: Lmin = 70 mm, Lmax = 270 mm
- Production speed: up to 180 cans per minute
- Spray guns / Spraying process: 6/3 times
- Application Technology: 6x Type S-233 or 6x Type S-8
- Electrical connection power: 95 kVA

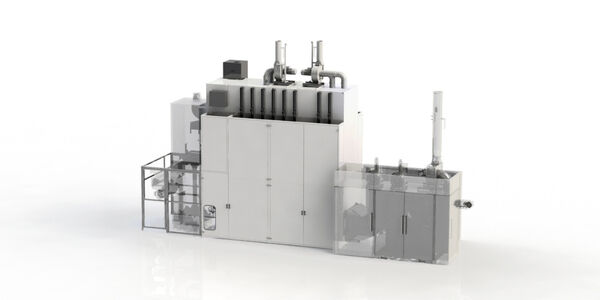

Internal drier for cans DIT
- 1-row transport chain with baskets
- Reduced wearout of the transport chain and the chain wheels by cardan based drive system
- Chain tensioner with weight, electronically monitored
- Easy accessibility to the drier interior due to large doors (front and back door)
- Quadruple door lock
- Isolated doors with special door hinges for synchronized door closing
- Large outer doors with smooth surface on the front and rear sides
- Service-friendly shaft and chain wheel removal and reassembly
