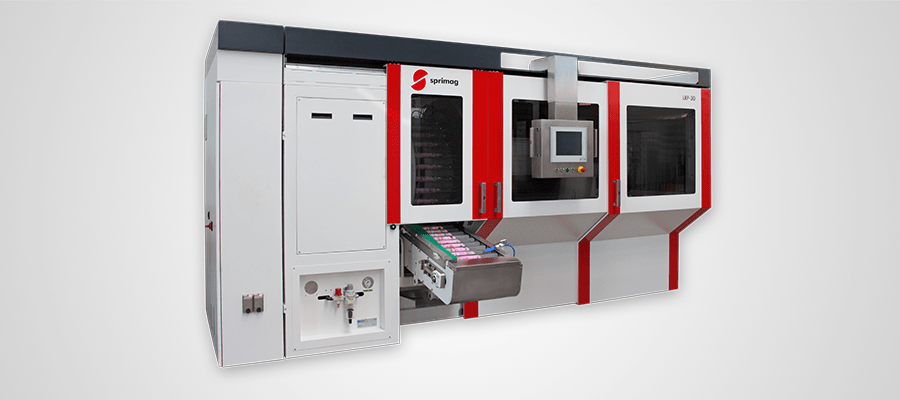

LRP-30: Leak detection machine

The new leak detection machine for monobloc aerosol cans can be easily integrated into any line system concept thanks to the line-oriented transfer in and out of the machine. In addition to optimized floor space ­requirements, the machine impresses with an easy machine handling and a quick size part changing. The number of testing heads results in significantly longer cycle times and therefore much more precise test results compared to the machine concepts previously used for monobloc aerosol cans.

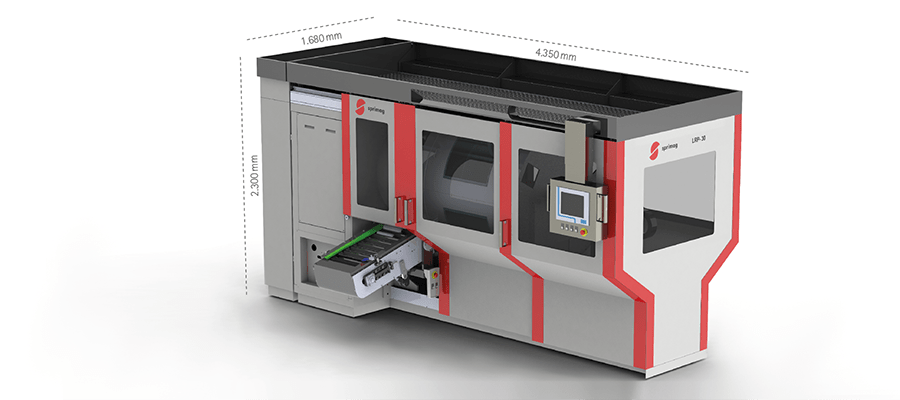

  • Compact machine design
  • Detects leaks reliably with a diameter starting from 0.04 mm

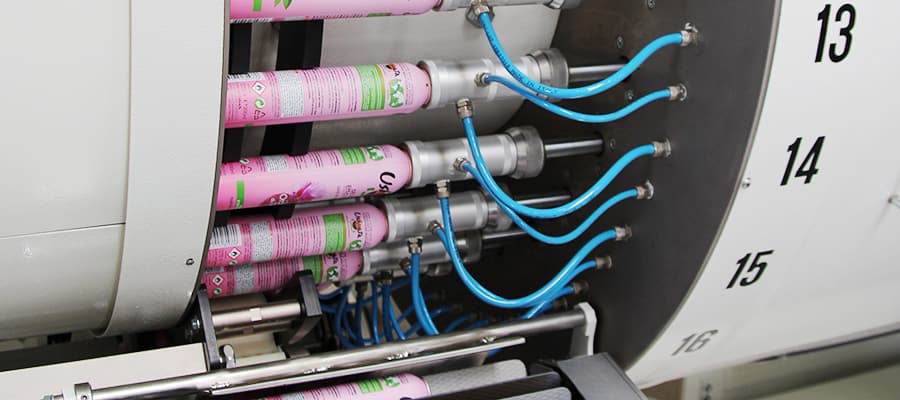

  • 30 testing heads guarantee a sufficiently long cycle time and precision
  • Machinery speed up to 300 cans per minute
  • Motorized stroke adjustment for adaptation to other can lengths
  • Quick-change system for size parts
  • Automatic ejection of non-okay cans
  • Variable infeed and outfeed conveyor system adaptable to any standard transfer concept
  • Machine housing with high ease of use, based on the design concept of tool manufacturing machines
Request now

Options

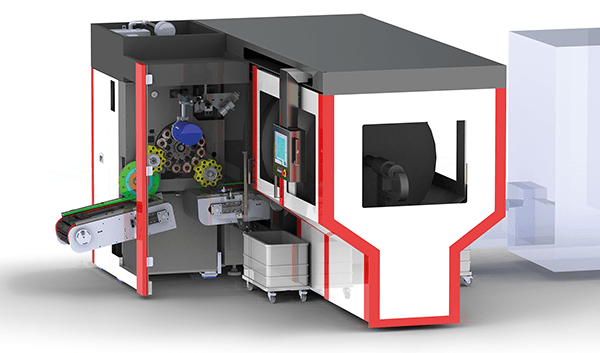

  • All-in-one option LRP-30C in combination with CIM-12 camera inspection machine

Technical Data

  • Product range: Aerosol cans
  • Production speed: up to 250 cpm
  • Standard diameter: Dmin 22 mm, Dmax 66 mm
  • Trimmed can height: Lmin 65 mm, Lmax 280 mm
  • Testing heads: 30
